Philip DFM100 M3543A / 989803196431 PADDLE
Detail produk:
| Tempat asal: | Asli |
| Nama merek: | PHILIP |
| Nomor model: | DFM100 |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|---|
| Harga: | Negotiation, pls contact me |
| Kemasan rincian: | Kotak karton |
| Waktu pengiriman: | Dalam 1-2 hari kerja setelah pembayaran dikonfirmasi |
| Syarat-syarat pembayaran: | T/T, Western Union |
| Menyediakan kemampuan: | 10 |
|
Informasi Detail |
|||
| hal: | M3543A / 989803196431 | Model: | DFM100 |
|---|---|---|---|
| Saham: | Tersedia | PRICE: | NEGOTIABLE |
| Jaminan: | 90 Hari | Kondisi: | Baru dan Asli |
Deskripsi Produk

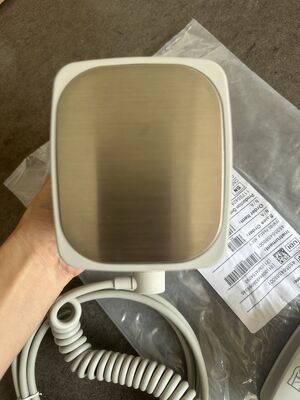

Philip DFM100 M3543A / 989803196431 PADDLE
1. Model & Compatibility
- Paddle Part No.: M3543A / 989803196431
- Compatible Device: Philip Efficia DFM100, HS Intrepid
- Type: Reusable external adult / paediatric combination defibrillation paddles
2. Clinical Energy & Shock Waveform
- Adult mode (≥10 kg): Max shock energy 200J
- Paediatric mode (<10 kg): Automatic low energy output (≤50J)
- Waveform: Biphasic Truncated Exponential (BTE)
- Automatically adjust output by patient thoracic impedance
- Impedance detection range: 25 Ω – 250 Ω (external)

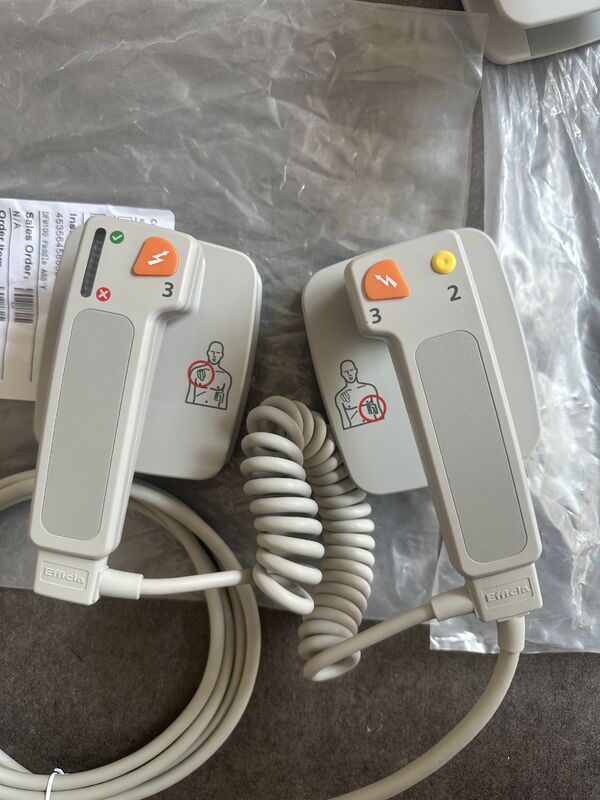

3. Structural & Functional Features
- Integrated dual-surface design: Adult large electrode surface + built-in paediatric small electrode surface
- Right sternum paddle: Equipped with PCI contact indicator light
Green = good skin contact; Orange / Red = poor contact
- Left apical paddle: With remote charge button
- Both paddles with orange synchronous shock discharge buttons
- Built-in 2-lead ECG acquisition for arrhythmia analysis
4. Electrical & Physical Parameters
- Sensing signal: 500nA RMS / 571Hz; 200μA RMS / 32kHz
- Safety classification: BF type, defibrillation-proof
- Cable length: Approx. 2.5 m
- Reusable & sterilizable
5. Disinfection Requirements
- High-temperature high-pressure sterilization: Up to 134°C
- Supported chemical disinfection and wipe disinfection
- Repeatedly autoclavable for clinical long-term use
