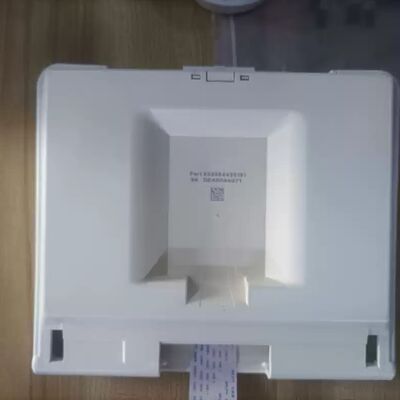

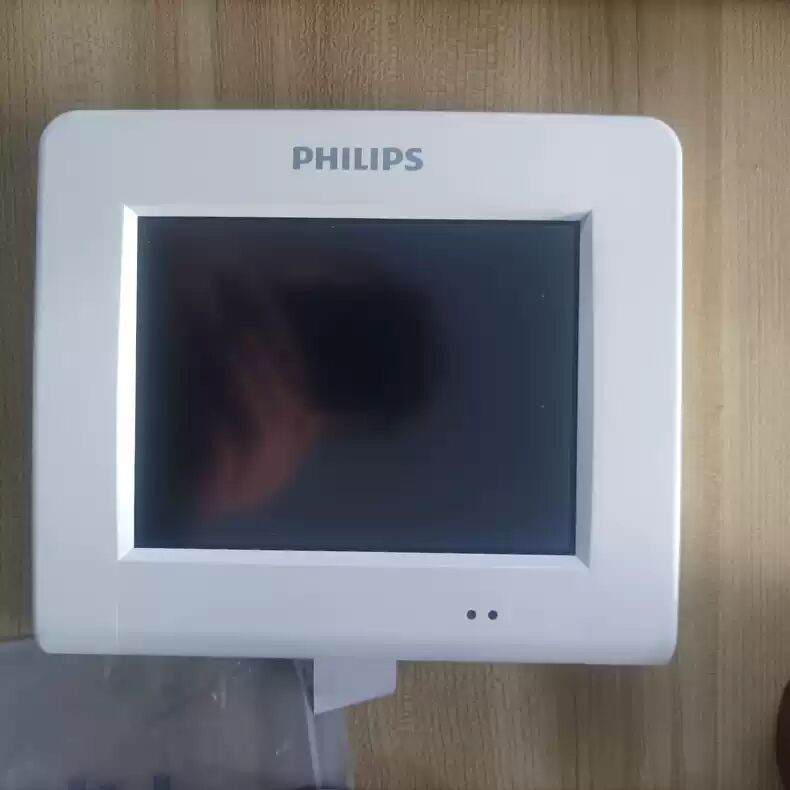

PN:453564150521 FM20 FM30 LCD SCREEN PART
Detail produk:
| Tempat asal: | Asli |
| Nama merek: | PHILIP |
| Nomor model: | FM20 FM30 |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|---|
| Harga: | Negotiation, pls contact me |
| Kemasan rincian: | Kotak karton |
| Waktu pengiriman: | Dalam 1-2 hari kerja setelah pembayaran dikonfirmasi |
| Syarat-syarat pembayaran: | T/T, Western Union |
| Menyediakan kemampuan: | 10 |
|
Informasi Detail |
|||
| Merek: | Philip | Model: | FM20 FM30 |
|---|---|---|---|
| hal: | 453564150521 | Kondisi: | Bagus |
| Jaminan: | 90 Hari | ||
Deskripsi Produk
PN:453564150521 FM20 FM30 LCD SCREEN PART
Basic Information
Touch Screen: 4‑wire resistive touch panel
Integrated Parts: LCD panel + touchscreen + backlight inverter + display adapter board (M2703‑66440)
Main Connection: 50‑pin ribbon cable to recorder adapter board (M2703‑66430)
Interface: 5‑wire touch connector; standard power/signal cables
Mounting: Original housing fit, direct replacement
Functions
Primary user interface for FM20/FM30
Displays fetal/maternal vital signs, waveforms, and NST traces
Touchscreen for monitor operation and data input
Enables integration with OB TraceVue / IntelliSpace Perinatal systems
Physical & Electrical
Color: White bezel (matches FM20/FM30 chassis)
Condition: New / refurbished available; 90‑day warranty typical
Application: Hospital / clinical obstetric monitoring environments
- Part Number: 453564150521 (also referenced as 453564435191)
- Device Compatibility: Philip Avalon FM20 / FM30 Fetal Monitors
- Type: Complete LCD & Touch Screen Assembly (5‑wire)
