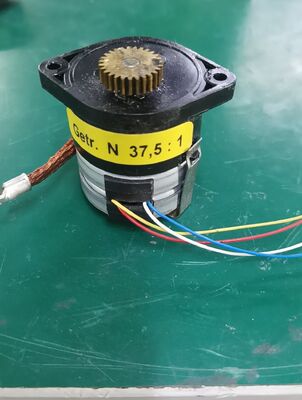

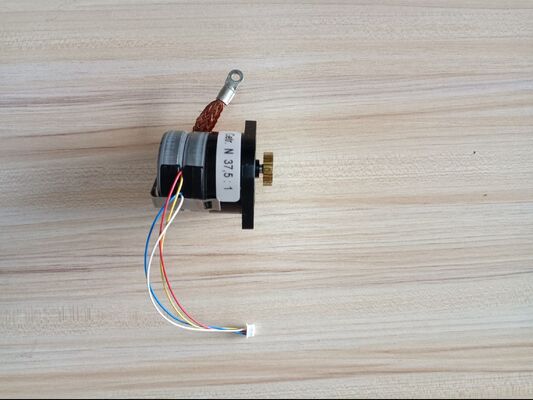

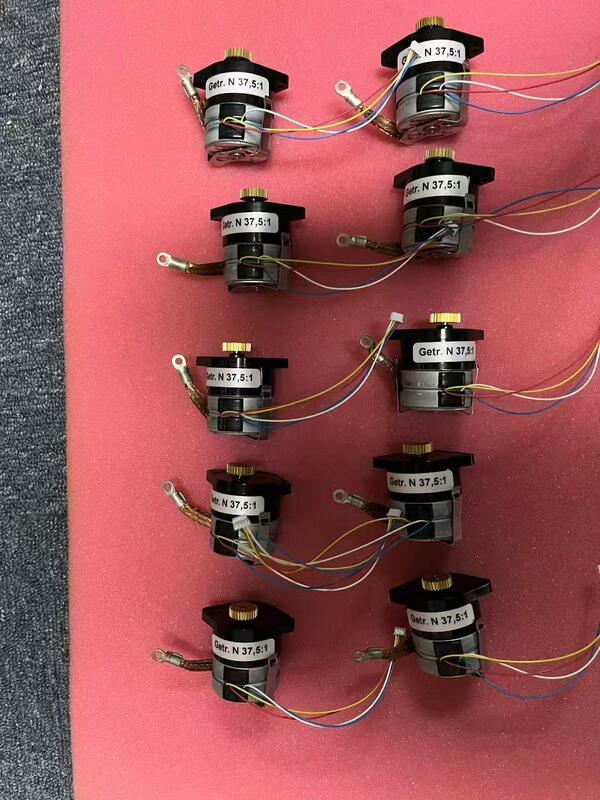

PN:451261010401 / M2703-60004 Philip Avalon FM20 / FM30 Fetal Monitor – Recorder Stepper Motor
Detail produk:
| Tempat asal: | Asli |
| Nama merek: | PHILIP |
| Nomor model: | FM20 FM30 |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|---|
| Harga: | Negotiation, pls contact me |
| Kemasan rincian: | Kotak karton |
| Waktu pengiriman: | Dalam 1-2 hari kerja setelah pembayaran dikonfirmasi |
| Syarat-syarat pembayaran: | T/T, Western Union |
| Menyediakan kemampuan: | 10 |
|
Informasi Detail |
|||
| Aplikasi: | bagian monitor janin | Merek: | Philip |
|---|---|---|---|
| hal: | 451261010401/M2703-60004 | Jaminan: | 90 Hari |
| Saham: | Tersedia | Kondisi: | Bagus |
| Menyoroti: | Fetal Monitor stepper motor,Philip Avalon FM20 recorder,FM30 fetal monitor parts |
||
Deskripsi Produk
PN:451261010401 / M2703-60004 Philip Avalon FM20 / FM30 Fetal Monitor – Recorder Stepper Motor
2. Electrical & Mechanical Specifications
- Motor Type: 2-phase, 4-wire stepper motor
- Operating Voltage: DC 12 V (internal monitor supply)
- Gear Ratio: 5:1 (N37 gearbox)
- Step Angle: 7.5°/step (after gear reduction: 1.5°/step)
- Rated Current/Phase: 0.67 A
- Phase Resistance: 5.6 Ω
- Phase Inductance: 4.2 mH
- Holding Torque: 8.3 kg-cm (≈0.81 N·m)
- Output Shaft: D-shaft (fits paper roller)
- No-load Speed: approx. 50 RPM @ 12 V
- Selectable Paper Speed: 1 cm/min, 2 cm/min, 3 cm/min
3. Physical Dimensions
- Size: Ø 37 mm, length 45 mm (including gearbox)
- Weight: approx. 110 g
- Insulation Class: Class B
- Wiring: 4 wires (red, blue, brown, white) with dedicated connector
4. Function & Compatibility
- Purpose: Drives the built-in thermal recorder for printing FHR and tocograms.
- Compatible Models: Philip Avalon FM20, FM30 (M2702A / M2703A)
